Easement and parcel exhibits drafted in Civil 3D, to your standards and your title block. When a project lands with more parcels than your CAD staff can turn, DK Drafting takes the batch.
Right-of-way takes, permanent and temporary easements, and parcel sketches for utility, pipeline, DOT and broadband alignments. One DWG and one PDF per parcel, named your way, drafted for review and seal by your licensed surveyor.

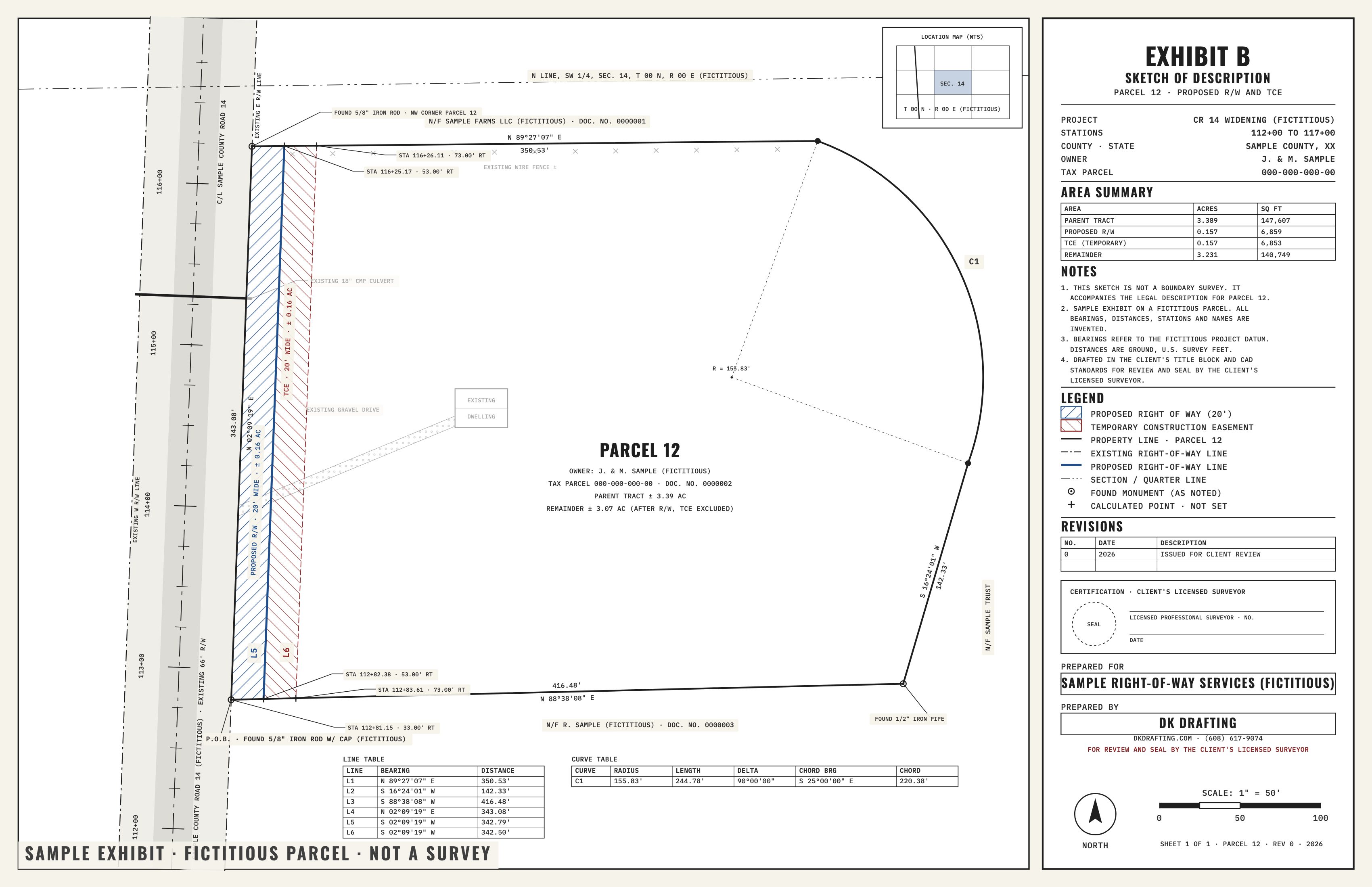

An Exhibit B sketch of description: stationed alignment, existing and proposed right of way, the take and temporary easement hatched, bearings and distances, area summary, line and curve tables, notes and legend. The sheet below is a sample on a fictitious parcel, drawn in the same format as a client exhibit, so you can see the deliverable without us publishing anyone's project.
Permanent and temporary easements on the parent parcel, hatched and labeled, with the sketch and description formatted the way your county records them.
Proposed right-of-way lines from the alignment, station and offset callouts, take and remainder areas, and the TCE alongside.
Parcel maps and ownership exhibits from deeds and title commitments, with adjoiners, section ties and monument calls.
Shifted centerlines re-run through every affected parcel. Updated exhibits and areas come back as a set, named your way.
Batches are the point. Exhibits are drafted to your title block and file naming, delivered in releases so review starts before the batch is finished.
The same fixed-quote workflow survey firms use with us, sized for batches.
Share the alignment, parcel list, deeds or title data and your title block. Ask with no files if you just need an idea of scope and schedule.
You get a written quote and a delivery schedule for the batch. Approve it and the batch goes on the board.
Exhibits are drafted to your standards and delivered in releases, so review starts before the batch is finished.
Your licensed surveyor reviews and seals. Comments come back as one consolidated revision round per release.
Every batch is quoted and scheduled before work begins. The scope below is the same on every exhibit.
Exhibits are drafted for review and seal by your licensed surveyor. DK Drafting is a drafting service, not a surveying firm: we do not set monuments, resolve boundaries or certify descriptions. Descriptions are drafted to match the drawn geometry and checked for closure before delivery.
Revisions: comments from your reviewer come back as one consolidated revision round per release. An alignment change is re-run through the affected parcels and delivered as its own release.
The alignment file (DWG, or a shapefile we can bring into Civil 3D), the parcel list with owner and deed references, title commitments or deeds, any survey data, and a sample exhibit from your firm so we match your format. A sample DWG with your title block is the fastest way to set standards.
Yes. Every exhibit is drafted on your title block, layers, linetypes and text styles, and files are named to your convention. The exhibit reads as your firm's work.
We draft the description to match the sketch geometry and check it for closure, formatted to your county's conventions. Your licensed surveyor reviews, revises as needed, and seals.
Batches are quoted with a delivery schedule and delivered in releases, so your reviewers see the first parcels while the rest are drafted. Rush turnaround is available; ask when you request the quote.
Send the revised alignment and the list of affected parcels. Those exhibits are re-run and the areas updated, delivered as their own release.
No. DK Drafting is a drafting service for surveyors, engineers and right-of-way teams. Exhibits are drafted for review and seal by your licensed surveyor, and everything is delivered white-label under your title block.
Send the parcel count and alignment and Dakota will reply within one business day with a quote and a schedule. Files are welcome but not required to ask.
A written quote and delivery schedule before any drafting starts.
